Er-Doped Fiber Amplifier

Customized Specifications Available!!!
Southwold's Fiber Amplifier, EDFA1000-RM, is an elaborate Er-Doped Fiber Amplifier which provides high output power, low Noise Figure, wide operating wavelength range and Gain Flatness for both analog and digital applications. Used as Power Booster or as In-Line Amplifier, the EDFA1000-RM is ideally suited to satisfy customer's needs in CATV applications.

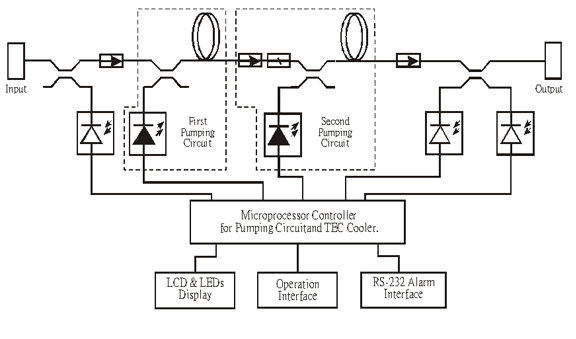

The EDFA1000-RM uses state-of-the-art 980/1480nm Pump Laser Diodes and the precise Erbium fiber generates most effective output power. The EDFA1000-RM provides up to 19dBm in single-stage and up to 23dBm in dual-stage. Besides, the Gain Module is equipped with PIN diodes, microprocessor, control and monitor circuits. Thus, the input, output, and return power can be accurately monitored and controlled.

Features

  • Different Models for Output Power ranging from 14 to 23 dBm
  • Low Noise Figure
  • Smoth Gain Flatness
  • Wide wave length range
  • User-friendly Interface
  • Excellent Thermal management
  • RS232/422/485 Alarm Interface

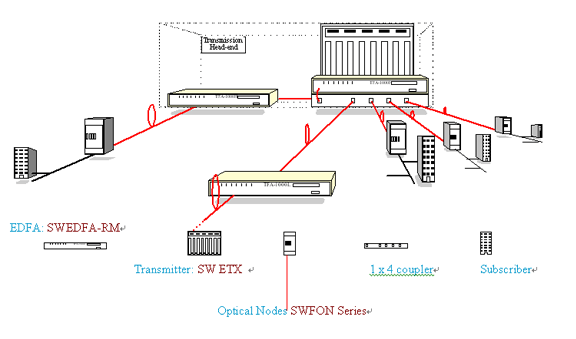

Applications

    Power Booster for CATV and distribution networks
    Post amplifier for long-haul transmission
    In-Line amplifier
